Bus shelter dimensions should be selected from passenger demand, site constraints and accessibility needs—not copied from a single standard drawing. A compact stop on a narrow sidewalk and a high-volume interchange may use the same structural system, yet require very different lengths, depths, entrances and seating layouts. This guide explains how project teams can turn site information into a clear shelter specification before requesting quotations.
For product options and fabrication capabilities, review our custom bus shelter range.
bus shelter dimensions: the short answer

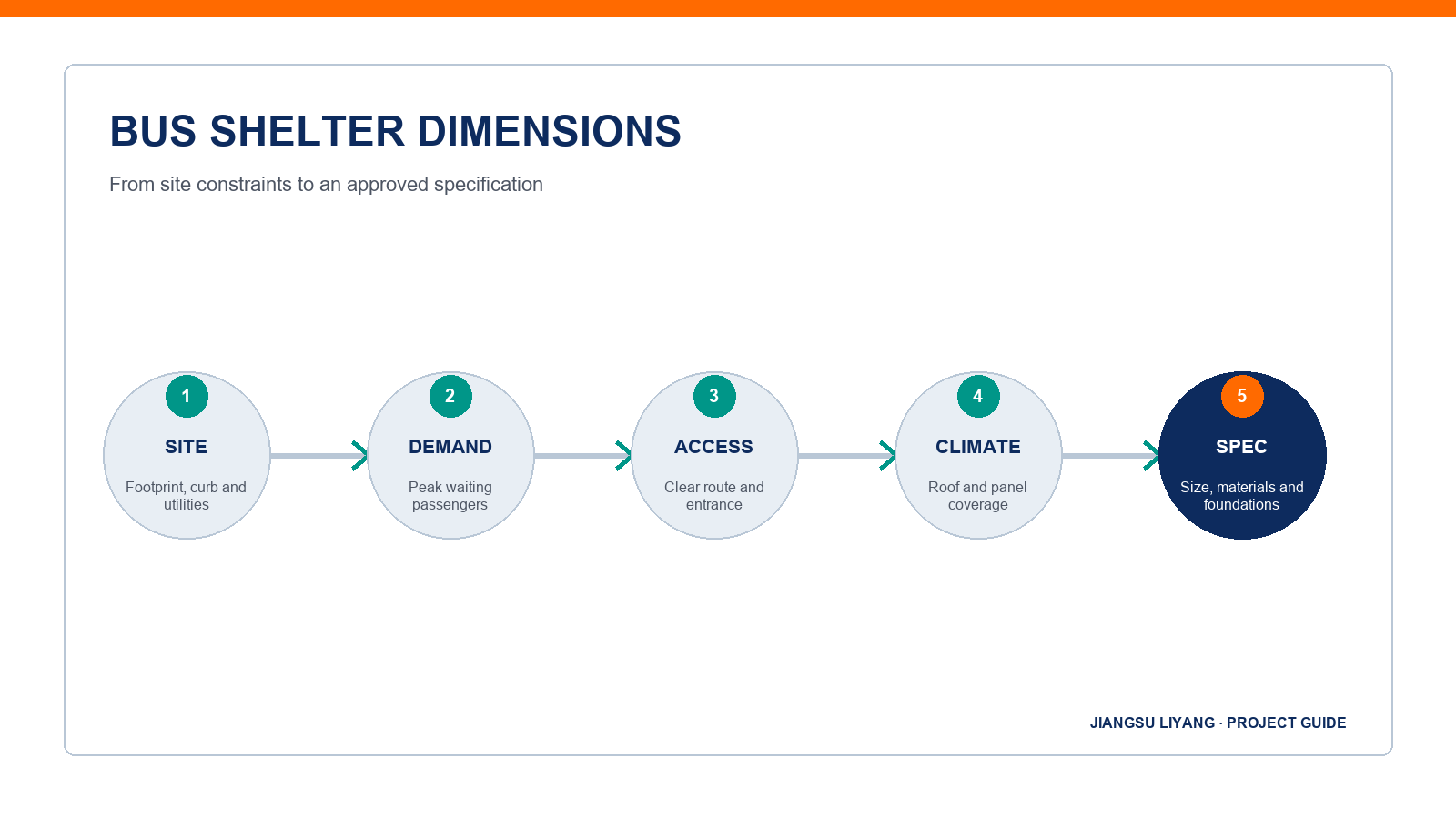

Start with the usable waiting area, clear pedestrian route and passenger capacity. Then define overall length and depth, roof coverage, entrance width, seat quantity, panel arrangement, drainage, lighting and foundation interfaces. Local transport and accessibility rules always take priority over a supplier’s typical size.
Key decisions before requesting a quotation
- Passenger capacity: Estimate peak waiting passengers rather than average daily traffic. Allow extra standing space around seating, information panels and boarding movements.
- Available footprint: Record sidewalk width, curb position, nearby trees, utilities, cycle lanes and property boundaries. The shelter must not block the continuous pedestrian route.
- Weather exposure: Wind-driven rain, sun direction and snow or drainage conditions affect roof projection, panel coverage and orientation.
- Operations: Cleaning access, replacement glazing, advertising panels, lighting maintenance and snow clearance all need working space.
Turn the requirement into a coordinated project brief
A useful brief connects the product decision to the site and the people who will operate it. Confirm who approves the design, who prepares local engineering, who provides foundations or utilities, who receives the shipment and who maintains the completed installation. Record assumptions instead of leaving them inside email threads. This is especially important when the factory, project designer and installer are in different countries.
For this topic, overall length should respond to passenger demand and module count, with show outside-to-outside dimensions and usable internal length recorded in the project documents; overall depth should respond to sidewalk width and weather protection, with separate roof depth from enclosed waiting depth recorded in the project documents; entrance/opening should respond to access and boarding flow, with confirm clear opening after posts, panels and furniture recorded in the project documents; roof and panels should respond to climate and orientation, with define coverage, material, thickness and replaceable module sizes recorded in the project documents; foundation should respond to ground conditions and local practice, with state base plate, anchor and finished-level interfaces recorded in the project documents. That level of coordination makes it easier to detect missing scope before purchase and gives the supplier a clearer basis for drawings, samples and pricing.
Related searches such as bus stop dimensions, bus stop shelter dimensions, bus shelter specifications often describe adjacent questions rather than separate products. They should be handled in the same decision process when the user intent overlaps, while genuinely different configurations can be supported by dedicated product or application pages.
Specification framework
| Item | What drives the decision | What to document |
|---|---|---|
| Overall length | Passenger demand and module count | Show outside-to-outside dimensions and usable internal length |
| Overall depth | Sidewalk width and weather protection | Separate roof depth from enclosed waiting depth |
| Entrance/opening | Access and boarding flow | Confirm clear opening after posts, panels and furniture |
| Roof and panels | Climate and orientation | Define coverage, material, thickness and replaceable module sizes |
| Foundation | Ground conditions and local practice | State base plate, anchor and finished-level interfaces |
The table is a planning framework rather than a substitute for local professional design. Applicable codes, authority requirements and site engineering should be confirmed for the destination.
Information to include in your RFQ
A clear request for quotation helps suppliers price the same scope and reduces late revisions. Include:
- dimensioned site plan and photographs
- peak passenger estimate
- required accessibility and municipal criteria
- preferred seating and advertising configuration
- material and finish expectations
- lighting or solar options
- foundation responsibility and installation scope
Ask bidders to list inclusions, exclusions, drawings, samples, packing, delivery terms, installation boundaries, warranty and recommended spare parts. Compare lifecycle serviceability as well as initial price.
How to evaluate a supplier response
- Confirm product fit. Check that the proposed model and configuration match the site, users and intended function.
- Normalize the scope. Put every quotation against the same material, finish, accessories, logistics and installation boundary.
- Review evidence. Request dimensioned drawings, material information, finish samples and relevant project or factory evidence.
- Resolve interfaces. Identify who is responsible for foundations, utilities, unloading, assembly, testing and local approvals.
- Plan maintenance. Confirm access, cleaning, consumables, replaceable components and after-sales documentation.
Common procurement mistakes to avoid
- Comparing visual appearance before confirming passenger capacity and available footprint.
- Approving a concept without documenting how weather exposure will be verified for the actual site.
- Leaving operations, access or maintenance responsibilities until installation begins.
- Comparing a factory-only offer with a delivered or installed offer without normalizing exclusions.
- Treating a supplier’s standard configuration as proof of compliance with local codes or authority requirements.
The best value is not automatically the lowest initial quotation. A proposal that clearly defines interfaces, documentation, replaceable parts and maintenance can reduce change orders and downtime over the product’s service life.
Frequently asked questions
Is there one standard bus shelter size?
No. Authorities and sites use different criteria. Manufacturers normally adapt modular designs to the required capacity, sidewalk and local rules.
Should dimensions include the roof overhang?
Yes. Drawings should show both the total outside dimensions and the clear usable area so clashes are visible.
What information produces a more accurate quote?
A site plan, target dimensions, quantity, material preference, wind or snow criteria, accessories, destination and installation scope.
